Fine adjustments of the folding mechanismUpdated 22 days ago

• Allen key 5 mm
• Allen key 2.5 mm

If the folding mechanism is very tight or has some issues, follow these steps. The fine adjustment is made using the hook at the bottom of the stem.

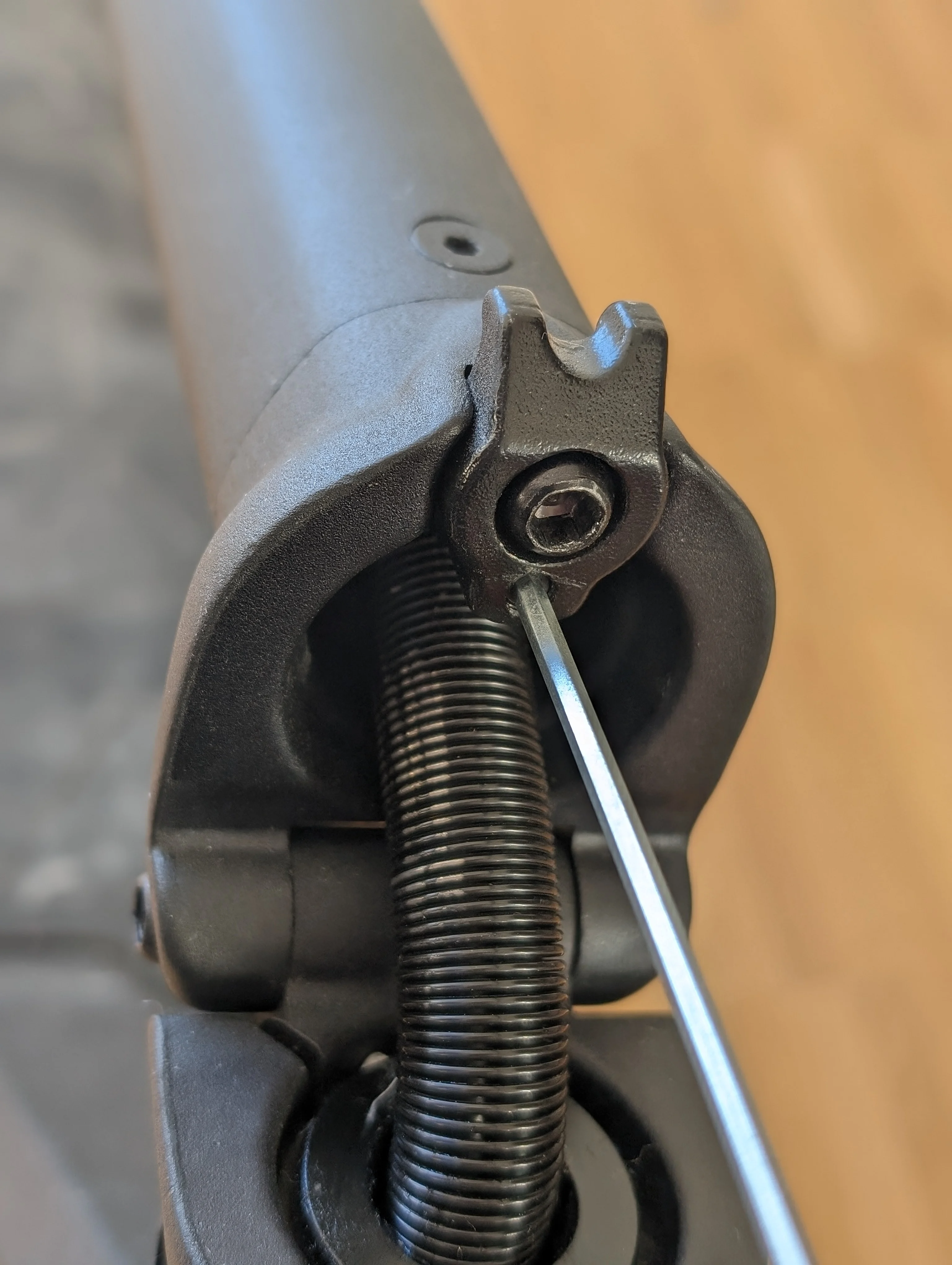

loosen the large screw inside the mechanism.

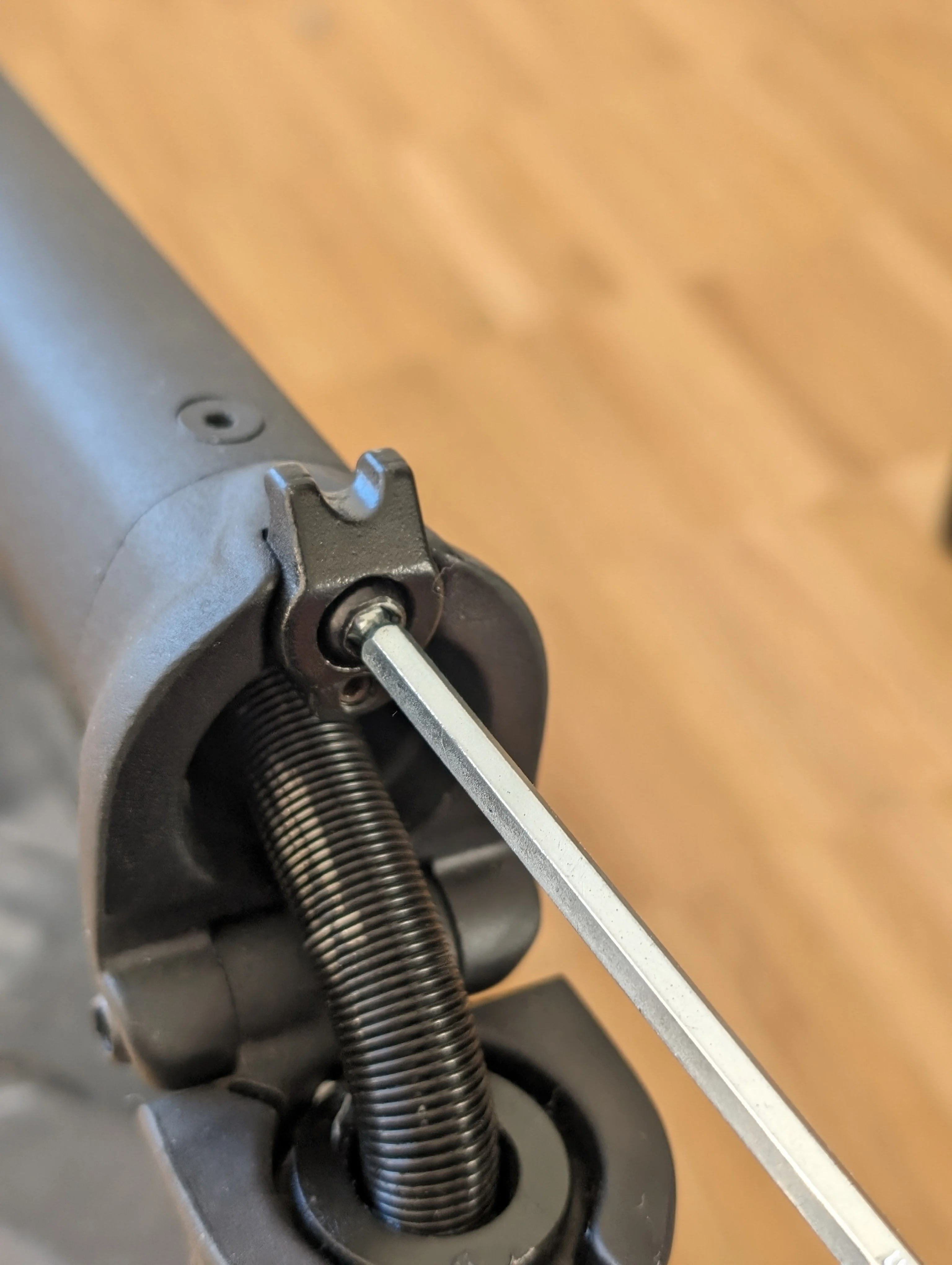

Adjust the angle of the hook using the small grub screw.

Screw the grub screw in further to tighten the folding mechanism. Loosen the grub screw to loosen the folding mechanism.

Tighten the large screw again.
