Rear light and mudguardUpdated 5 months ago

• Allen key 2.5 mm
• Allen key 3 mm
• Phillips
• Shrink tubing (alternatively insulating tape)
• Hot air dryer or lighter
• Scissors or knife
• OPTIONAL: Spray adhesive or hot glue

First, loosen the mudguard screw connection. To do this, loosen the four screws on the mudguard. You can loosen the brace if you remove the rear axle cover.

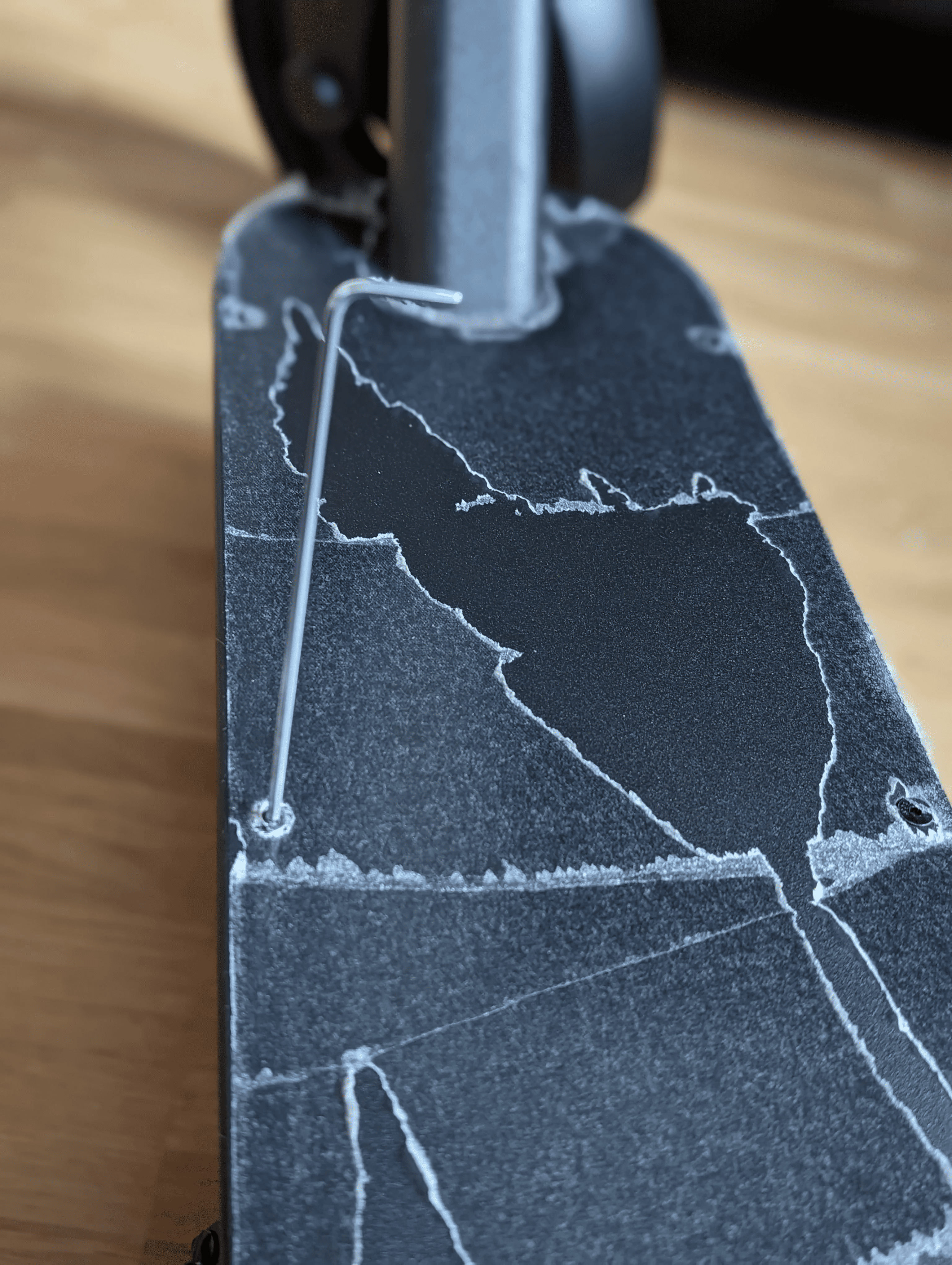

Now remove the rubber mat from your running board. Then remove the running board cover.

Remove the cable protection inside the running board and find the cable for the rear light. Loosen the shrink tubing here and unplug the rear light.

Disconnect the tail light wiring on the inside of the mudguard.
